NIVID 1336

business-image

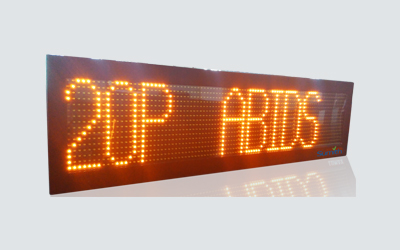

Sumith's NIVID-1336 compliance to Urban Bus Specification-II (JNNURM-II) of LED based Bus Destination Display Board.



Features

Technical Specifications

Features

  • Low Power Consumption due to efficient design
  • Wide viewing angle to assist roadside legibility
  • Excellent readability even in difficult light conditions
  • Flicker free display
  • LED: PLCC2 SMD
  • Standard Display Matrix: 16 x 96
  • Also available in customized sizes
  • Multi-lingual text ( English and 2 regional languages)
  • Amber is the typical monochrome LED colour, but other options are
  • available (e.g. RED, WHITE, GREEN, BLUE etc)
  • Capability to show customized graphics
  • Automatic brightness control as per ambient light conditions up to
  • 50 steps
  • 2-line English and 1-Line regional language display
  • Also supports 2-line regional language display
  • Supports fixed, scrolling, flashing, alternative and combinations of
  • these display effects.
  • Capability to store the messages
  • Bus Destination Application
    • Displays route number, start stop, end stop and via stops
    • Maximum size of the route number: 6 characters. Supports route number in regional language
    • Displays route number: left side, right side and center of the display board
    • Displays route information, slogans, advertisements etc.
    • This display board used as “SIDE (NIVID 1336S)/ REAR (NIVID 1336R) DISPLAY BOARD”


Technical Specification

LED Pitch 9.375 mm x 12.5mm ( H x V )
LEDs: High Intensity, Amber Colour (591 to 595 nm)
PLCC2 (SMD) Package Colorless clear window
Viewing Angle: Horizontal 120° and vertical 120°
Brightness : >1000 mcd
Visibility Clearly visible in Day and Night, in all weathers up to 50 meters distance
Display Size 900 mm x 200 mm (H x V)
Character Size 1-line 200 mm and 2-line 100mm each
Visual Effects Fixed, Flashing, Alternative, Scrolling and combinations
Communication Interface RS-485, Full/Half Duplex, Baud Rate up to 115.2Kbps
Power Supply* 10V to 39V DC
Power Consumption @ 24V DC
   1.05A @ 100% intensity and when all LEDs ON.
   0.5A @ 100% intensity for normal display
   0.2A @ low intensity for normal display
No input polarity (Reverse polarity protection)
Cranking Protection
Output Short Circuit Protection, *Also available in 230V AC
Cabinet 970 mm x 270 mm x 35 mm (L x H x D )
Rugged construction with Aluminum and Powder Coated.
Vibration proof (confirms to IP66)
Operating Temperature -10°C to 80°C
Operating Humidity 5% to 98% RH
Display Cover UV protected Polycarbonate sheet

Datasheets

NIVID 1336

Applications

  • Bus Destination Boards
  • Factory and Production
  • Reception and welcoming
  • Exhibition and promotions
  • Clinic Displays and Waiting Room Signs
